Fuel Hose Reel 1" x 50' Spring Driven Retractable Diesel Hose Reel 300 PSI Industrial Auto Swivel Heavy Duty Steel Construction Reel with Fueling Nozzle for Aircraft Ship Vehicle Tank
Product details
| Management number | 218737817 | Release Date | 2026/05/03 | List Price | US$120.00 | Model Number | 218737817 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Alloy steel
- Efficient & Durable Fuel Transfer Hose: The fuel hose reel comes with a heavy-duty hose, which delivers 300 PSI/20BAR for maximum working pressure to achieve fast flow rates. 50' feet construction-grade rubber hose has superior strength, no fading, bending flexibility, resistance to abrasion, heat, ozone, and can operate in conditions of -14°F to 122°F (-20°C to 50°C).

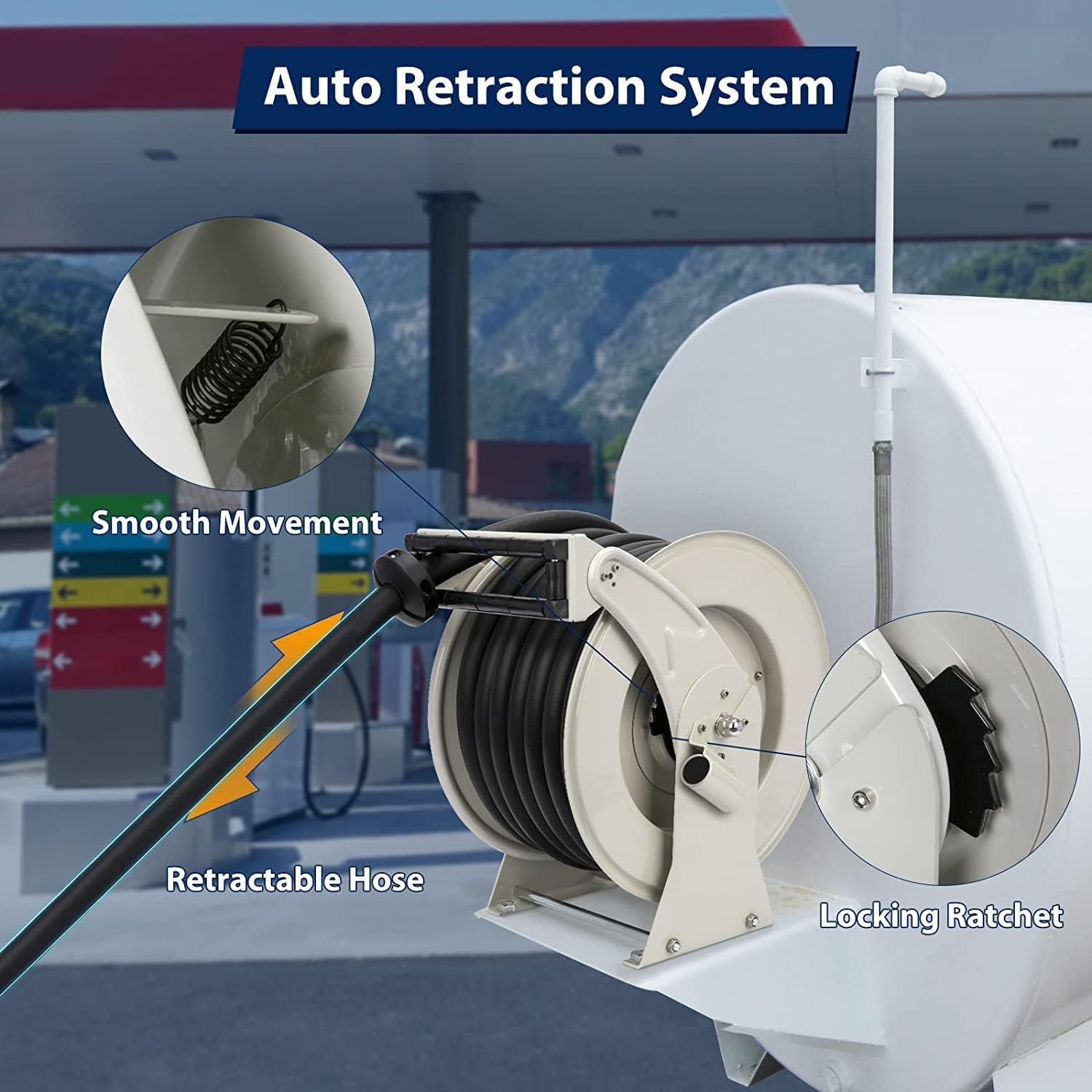

- ⚙Auto-Retractable Diesel Hose Reel: The diesel fuel hose reel with a great spring return system and the oil delivery hose reel can auto retract, which is convenient and time-saving. When pulling out the hose, the valve body and disc rotate clockwise. After refueling, simply give the hose a gentle tug, and the hose reel will retract back in a counterclockwise direction under the action of the spring and stops the hose with the adjustable hose stopper. It is flexible and easy to operate.
- ⚙Solid Brass Fittings Oil Hose Reel: The diesel hose reel includes 1" NPT fittings made from Solid Brass(CuZn40Pb2) for compatibility with diesel fuel, high hardness, strong chemical resistance, sturdy, and long service life, ensuring smooth, uninterrupted fluid flow without fuel leaking. Our fuel hose reels are well-suited to all industries including Agriculture, Industrial, Mining, and Transportation.
- ⚙Automatic Shut-Off Fuel Nozzle: The fuel nozzle is made of high-quality aluminum alloy. The interior adopts the design of the induction gun head, and the muzzle induction sensitivity is high, the inlet and outlet size of the nozzle is 1", and the maximum flow rate is 60L/Min. When the oil is full, the self-sealing hole is blocked by the oil, the nozzle will shut off automatically. With a one-key locking function, the flow of three gears can be controlled at will, without handholding.

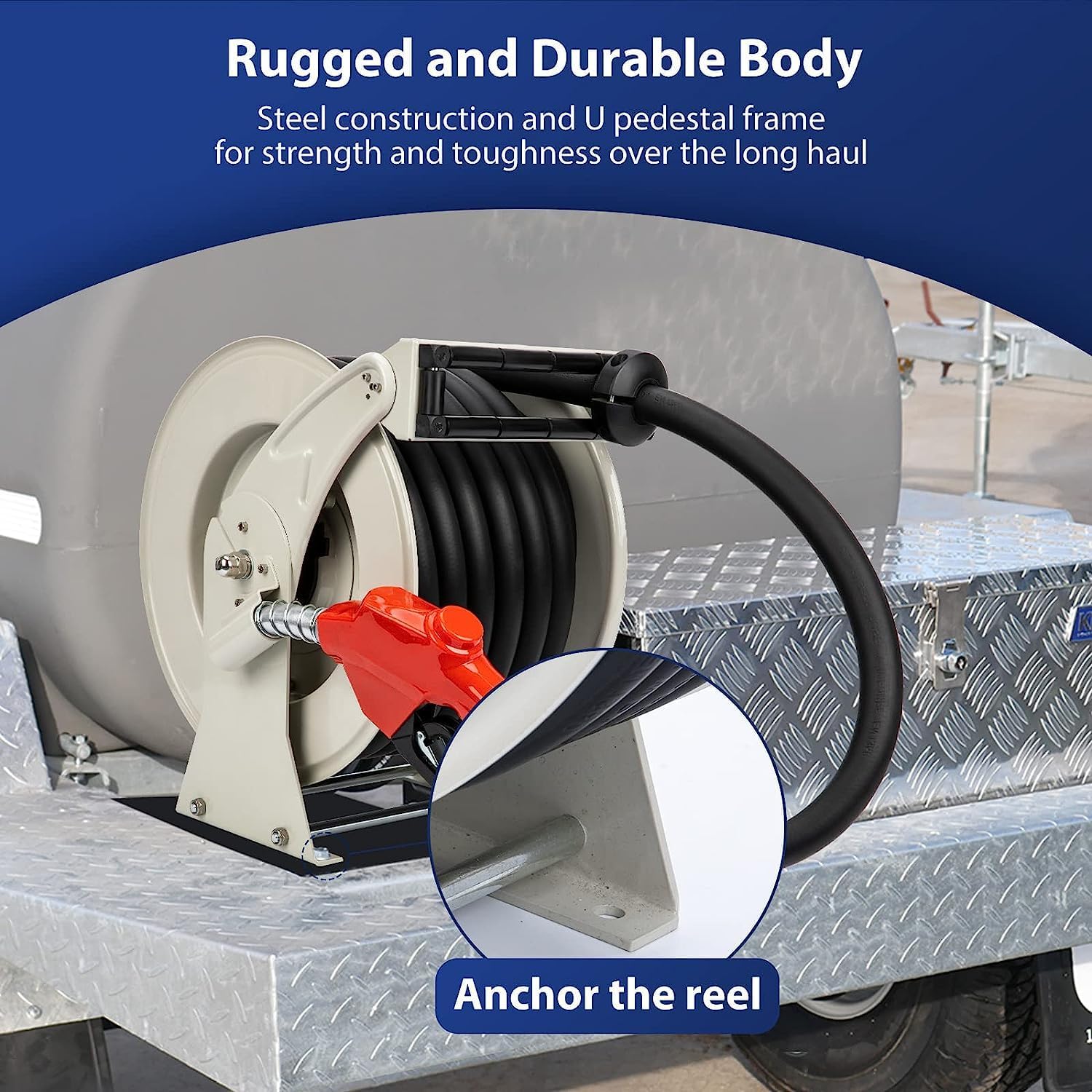

- ⚙Stable Sturdy Fuel Hose Holder: The sturdy fuel hose holder is designed with spun discs with reinforced flanged edges, heat-treated with powder coating resisting corrosion,our heavy-duty commercial grade auto rewind fuel hose reel ensures strength and long-term durability. Rugged dual arms frame resists twisting and kinks better than single-arm hose reel designs,and the U-shaped pedestal-style base provides stability and reliability in any environment, for the best advantage to suit your needs.
- ⚙Universal Application: Nice and compact retractable fuel hose reels support diesel, oil, gasoline, or kerosene applications on stationary or mobile units and are widely used to tank trucks, heavy industries, airports, docks, oil depots, and other places to provide a simple, fast, and reliable means for refueling aircraft, vehicles, ships, etc. Prevent kinking and binding and keep your work area organized with this auto-guide rewind system hose reel.
| UPC | 075814767555 |
|---|---|
| Color | Silver |
| Brand Name | Ecojoy |
| Style Name | Auto, Heavy Duty, Adjustable, Industrial, Professional |
| Unit Count | 50.0 Feet |
| Item Weight | 92.3 Pounds |
| Cable Length | 50 Feet |
| Manufacturer | Ecojoy |
| Model Number | 1" x 50' |
| Material Type | Alloy Steel , Nitrile Butadiene Rubber, Solid Brass |
| Item Type Name | fuel hose reel |
| Operation Mode | Automatic |
| Item Dimensions | 19.7 x 15.75 x 11.8 inches |
| Included Components | Fuel Hose(50ft≈15.24m) x 1, Fuel Nozzle x 1, Fuel hose reel x 1, Nozzle Holder x 1 |
| Installation Method | Wall Mount, Truck Mount, Gas Station Mount, Tank Truck Mount |
